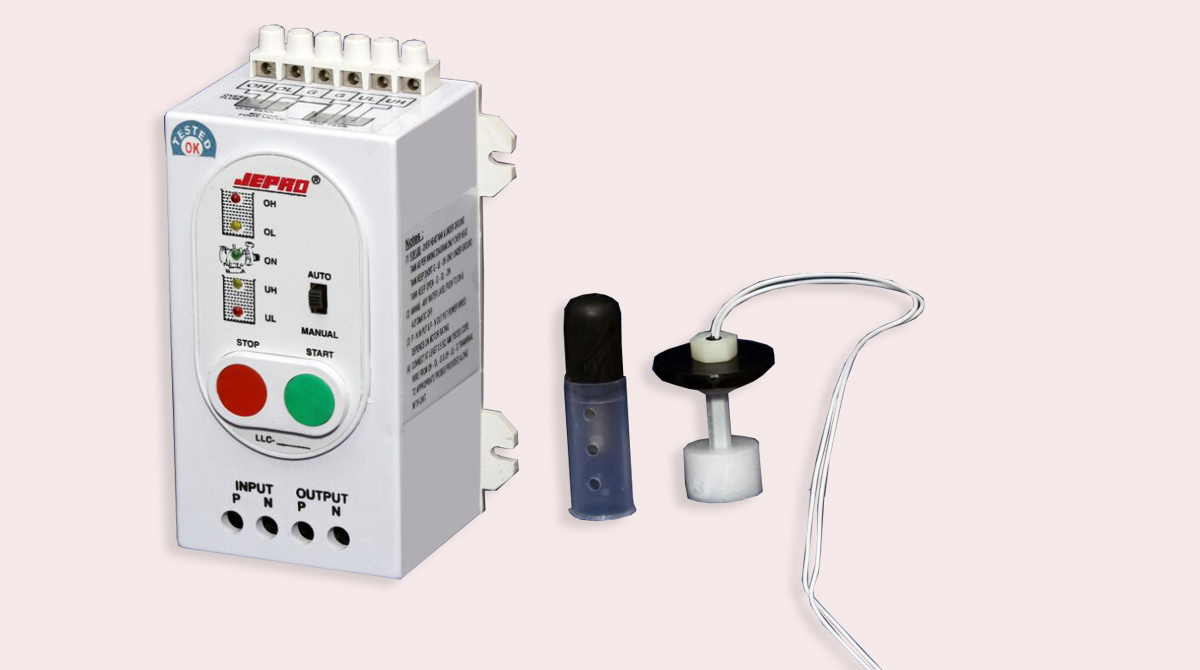

Automatic Liquid Level Controller
LLC-1
- Suitable for Single Phase Open well Motor/ Monoset Pump
- To Prevent from overflow of overhead tank
- Provide Dry Run Protection
- No Man Power Required
- Two Tank Controller
- Easy to install
- Fully Automatic control according to water level in tank
- Auto/Manual Facility
- LED indication for water level in both tank and Motor On
- Available with SS sensor/ Magnetic Sensor/ Corporation Sensor
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Load Capacity | 16 Amp |
| Switching Device | Relay |
| Indication | OH: Overhead high, OL: Overhead Low, ON: Motor On, UH: Underground High, UL: Underground Low |
| Enclosure | ABS Material |
- High rise buildings, Housing societies, Commercial complex, Municipal water stations etc.
- Customized industrial Panel, MCC panels of water pump

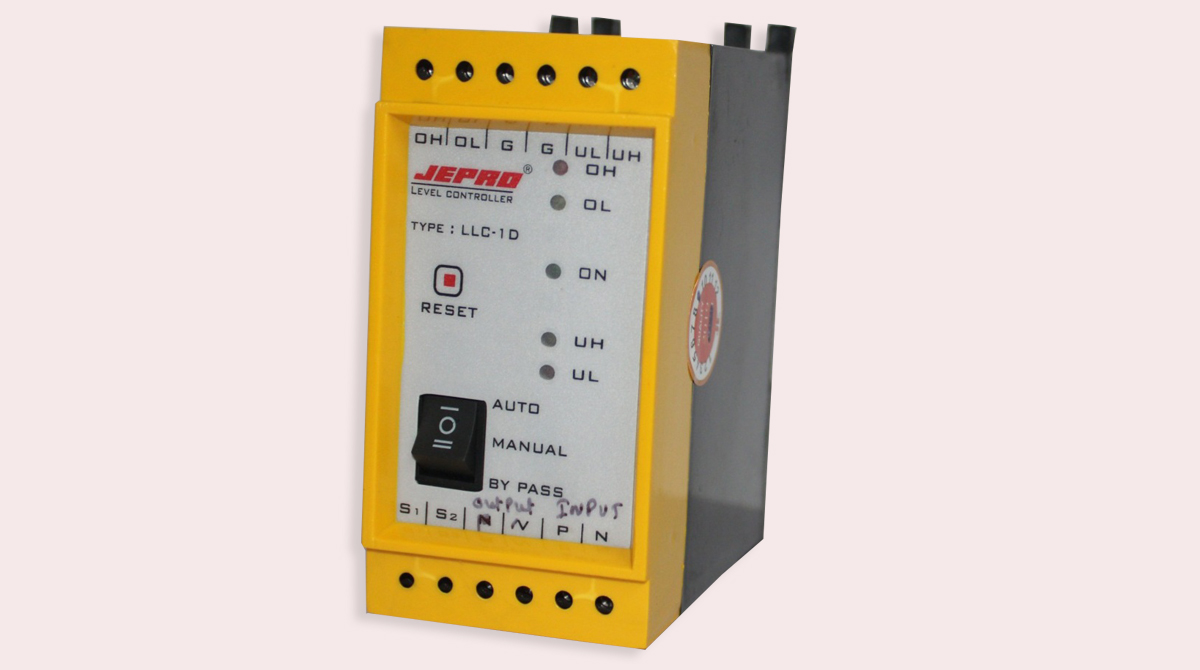

Automatic Liquid Level Controller
LLC-1D
- Suitable for 1Ø mono block pump with two tank controller
- Din Rail Mounting
- To Prevent from overflow of overhead tank
- Provide Dry Run Protection
- No Man Power Required
- Easy to install
- Fully Automatic control according to water level in tank
- Auto/Manual Facility
- LED indication for water level in both tank and Motor On
- Available with SS sensor/ Magnetic Sensor/ Corporation Sensor
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Load Capacity | 16 Amp |
| Switching Device | Relay |
| Indication | OH: Overhead high, OL: Overhead Low, ON: Motor On, UH: Underground High, UL: Underground Low |
| Enclosure | ABS Material |
- High rise buildings, Housing societies, Commercial complex, Municipal water stations etc.
- Customized industrial Panel, MCC panels of water pump

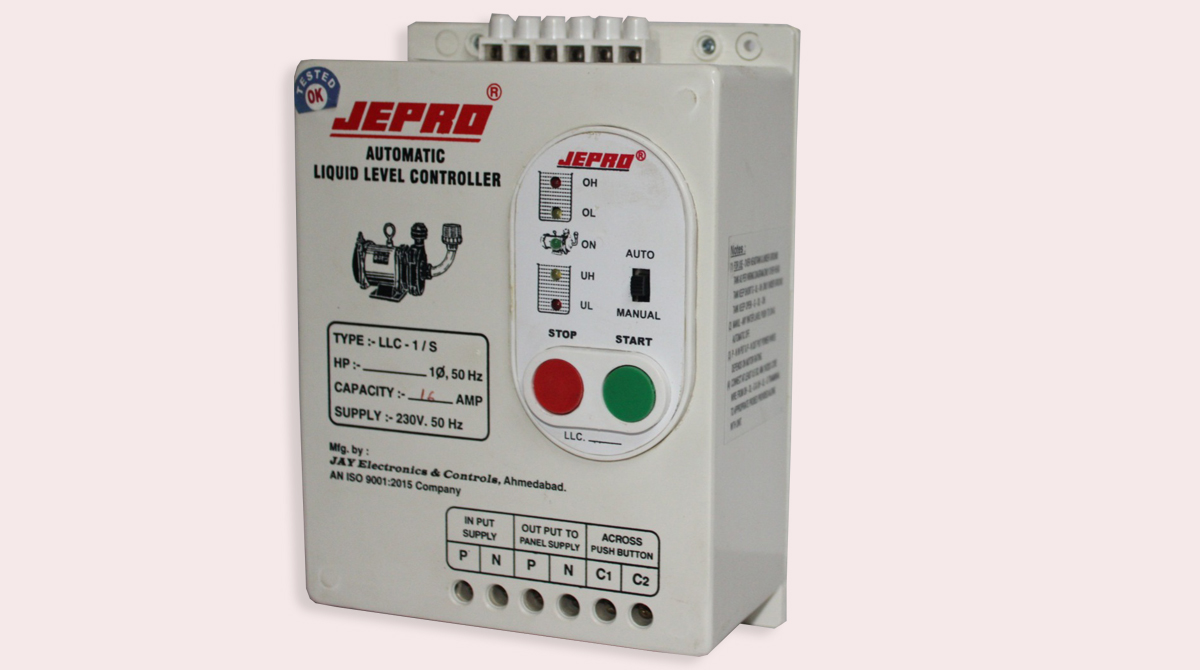

Automatic Liquid Level Controller
LLC-1-S
- Suitable For Single Phase Submersible Panel board
- To Prevent from overflow of overhead tank
- Provide Dry Run Protection
- No Man Power Required
- Two Tank Controller
- Easy to install
- Fully Automatic control according to water level in tank
- Auto/Manual Facility
- LED indication for water level in both tank and Motor On
- Available with SS sensor/ Magnetic Sensor/ Corporation Sensor
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Load Capacity | 16 Amp |
| Switching Device | Relay |
| Indication | OH: Overhead high, OL: Overhead Low, ON: Motor On, UH: Underground High, UL: Underground Low |
| Enclosure | ABS Material |
- High rise buildings, Housing societies, Commercial complex, Municipal water stations etc.
- Customized industrial Panel, MCC panels of water pump

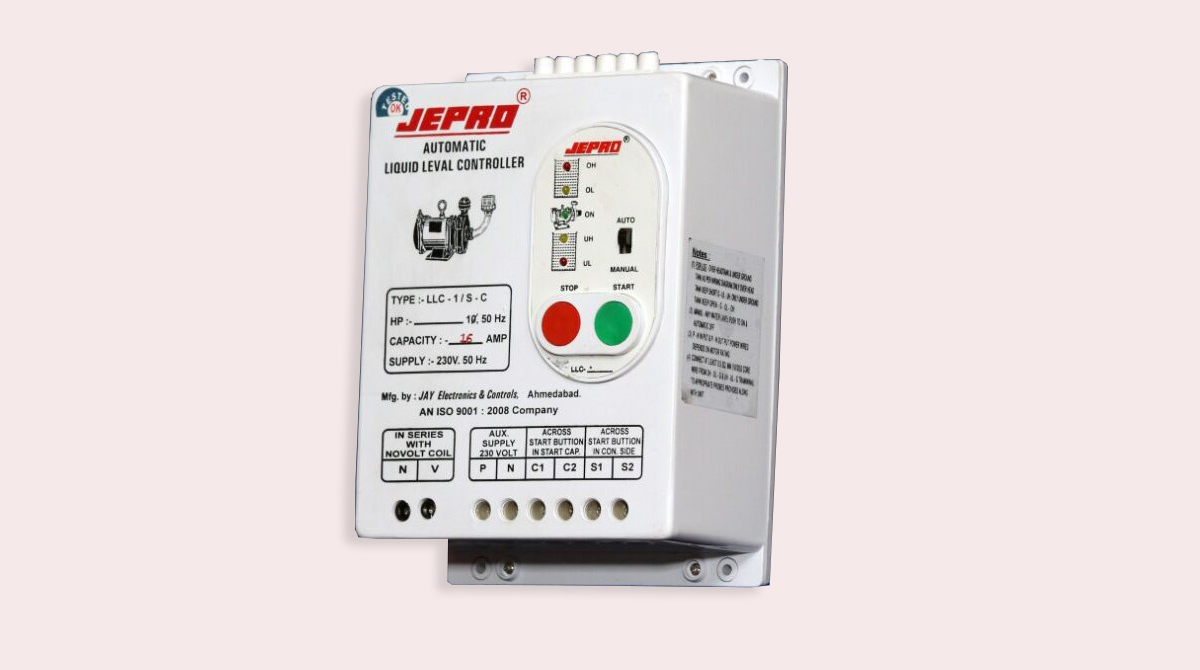

Automatic Liquid Level Controller
LLC-1-S-C
- Suitable for Contactor Type Single Phase panel board
- To Prevent from overflow of overhead tank
- Provide Dry Run Protection
- No Man Power Required
- Two Tank Controller
- Easy to install
- Fully Automatic control according to water level in tank
- Auto/Manual Facility
- LED indication for water level in both tank and Motor On
- Available with SS sensor/ Magnetic Sensor/ Corporation Sensor
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Load Capacity | 16 Amp |
| Switching Device | Relay |
| Indication | OH: Overhead high, OL: Overhead Low, ON: Motor On, UH: Underground High, UL: Underground Low |
| Enclosure | ABS Material |
- High rise buildings, Housing societies, Commercial complex, Municipal water stations etc.
- Customized industrial Panel, MCC panels of water pump

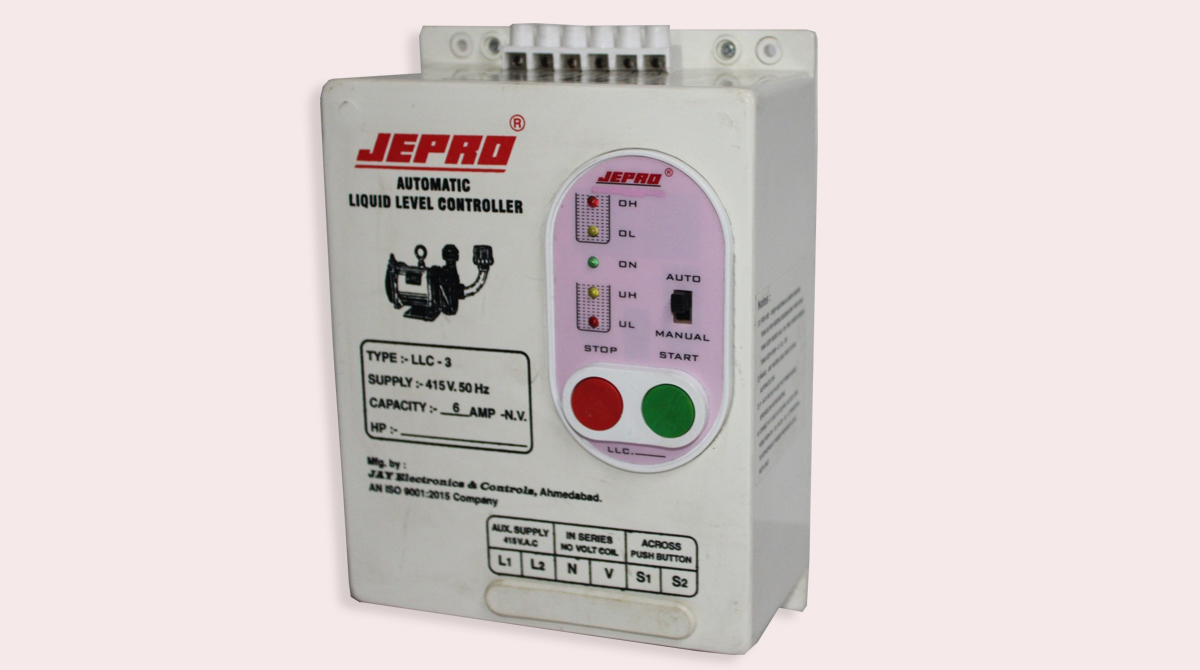

Automatic Liquid Level Controller
LLC-3
- Suitable for Three phase Motor / Pump
- To Prevent from overflow of overhead tank
- Provide Dry Run Protection
- No Man Power Required
- Two Tank Controller
- Easy to install
- Fully Automatic control according to water level in tank
- Auto/Manual Facility
- LED indication for water level in both tank and Motor On
- Available with SS sensor/ Magnetic Sensor/ Corporation Sensor
| System Voltage | 415 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Load Capacity | 16 Amp |
| Switching Device | Relay |
| Indication | OH: Overhead high, OL: Overhead Low, ON: Motor On, UH: Underground High, UL: Underground Low |
| Enclosure | ABS Material |
- High rise buildings, Housing societies, Commercial complex, Municipal water stations etc.
- Customized industrial Panel, MCC panels of water pump

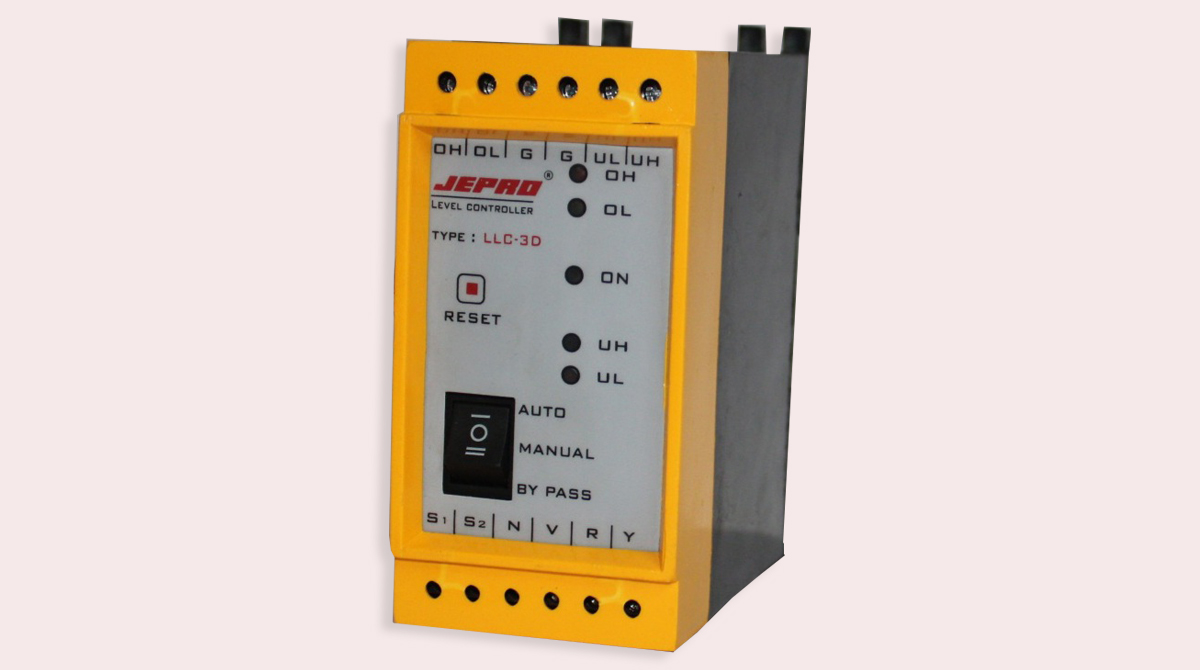

Automatic Liquid Level Controller
LLC-3D
- Suitable for Three Phase Motor / Pump
- To Prevent from overflow of overhead tank
- Din Rail Mounting
- Provide Dry Run Protection
- No Man Power Required
- Two Tank Controller
- Easy to install
- Fully Automatic control according to water level in tank
- Auto/Manual Facility
- Provide Reset key
- LED indication for water level in both tank and Motor On
- Available with SS sensor/ Magnetic Sensor/ Corporation Sensor
| System Voltage | 415 VAC ± 20%, 50HZ |
|---|---|
| Switching Device | Relay |
| Load Capacity | 16 Amp |
| Switching Device | Relay |
| Indication | OH: Overhead high, OL: Overhead Low, ON: Motor On, UH: Underground High, UL: Underground Low |
| Enclosure | ABS Material |
- High rise buildings, Housing societies, Commercial complex, Municipal water stations etc.
- Customized industrial Panel, MCC panels of water pump

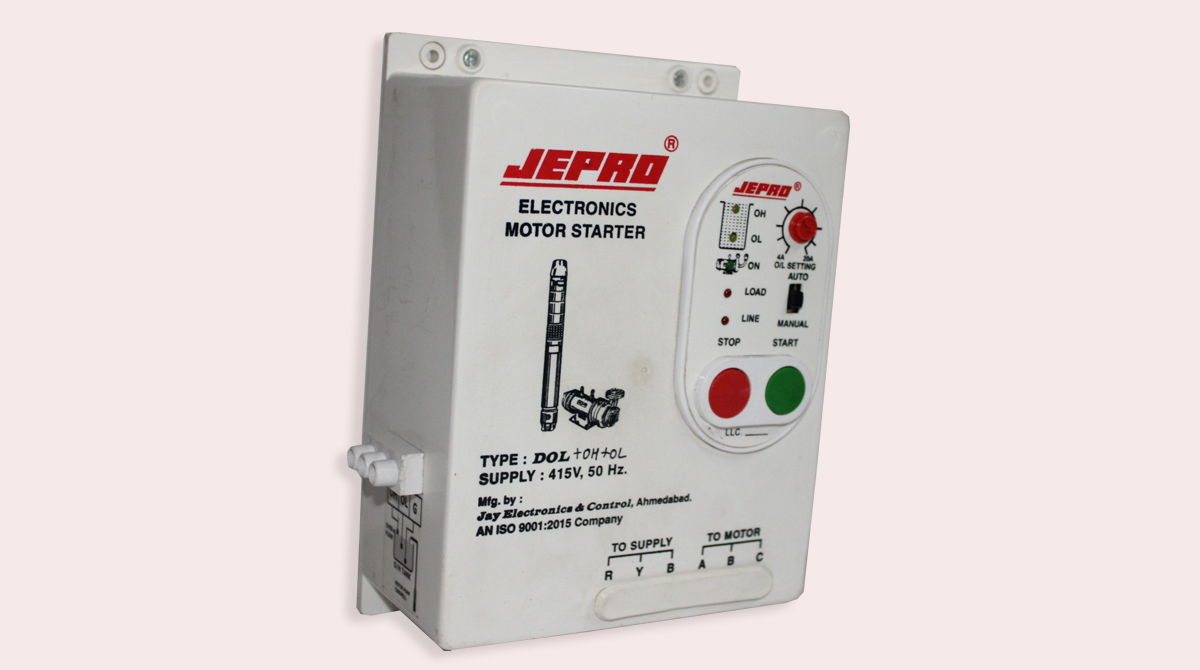

Automatic Liquid Level Controller
LLC-3-S + OL+OH
- Overhead Tank controller with Overload Protection
- Suitable for Three Phase submersible Motor/Pump
- To Prevent from overflow of overhead tank
- No Man Power Required
- Easy to install
- Fully Automatic control according to water level in tank
- Easy to set overload Setting by adjustable knob
- Auto/Manual Facility
- LED indication
- Available with SS sensor/ Magnetic Sensor/ Corporation Sensor
| System Voltage | 415 VAC ± 20%, 50HZ |
|---|---|
| Current range | 4A – 20A |
| Load Capacity | 16 Amp |
| Switching Device | Relay |
| Indication | OH: Overhead high, OL: Overhead Low, ON: Motor On, Load, Line |
| Enclosure | ABS Material |
- High rise buildings, Housing societies, Commercial complex, Municipal water stations, borewell etc.
- Customized industrial Panel, MCC panels of water pump

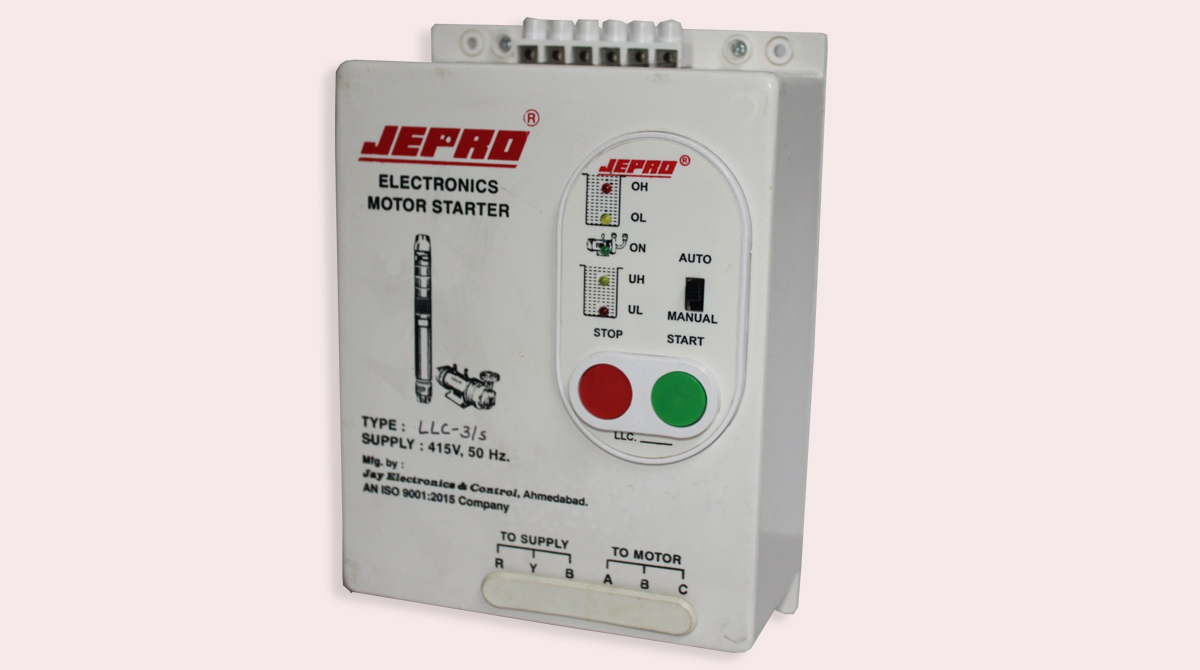

Automatic Liquid Level Controller
LLC-3-S
- LLC with SPP for Three Phase Motor
- To Prevent from overflow of overhead tank
- Provide Dry Run Protection
- Single Phasing Protection
- No Man Power Required
- Two Tank Controller
- Easy to install
- Fully Automatic control according to water level in tank
- Auto/Manual Facility
- LED indication for water level in both tank and Motor On
- Available with SS sensor/ Magnetic Sensor/ Corporation Sensor
| System Voltage | 415 VAC ± 20%, 50HZ |
|---|---|
| Switching Device | Relay |
| Indication | OH: Overhead high, OL: Overhead Low, ON: Motor On, UH: Underground High, UL: Underground Low |
| Enclosure | ABS Material |
- High rise buildings, Housing societies, Commercial complex, Municipal water stations etc.
- Customized industrial Panel, MCC panels of water pump

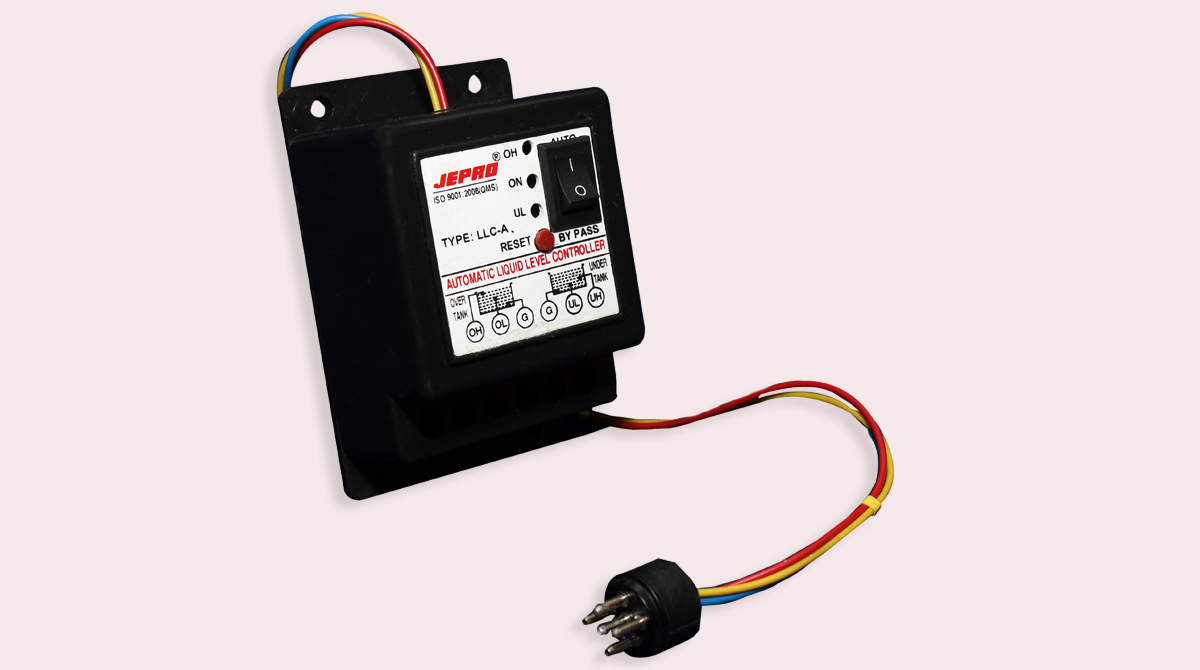

Automatic Liquid Level Controller
LLC-A
- Suitable for JEPRO make (JTC-A) Type Starter
- Water level adaptor
- To Prevent from overflow of overhead tank
- Provide Dry Run Protection
- No Man Power Required
- Two Tank Controller
- Easy to install
- Fully Automatic control according to water level in tank
- Provide Bypass Switch and Reset key
- LED indication
- Available with SS sensor/ Magnetic Sensor/ Corporation Sensor
| Input Supply | 9V DC from JEPRO JTC-A |
|---|---|
| Switching Device | Relay |
| Indication | OH: Overhead high, ON: Motor On, UL: Underground Low |
| Enclosure | ABS Material |
- High rise buildings, Housing societies, Commercial complex, Municipal water stations etc.
- Customized industrial Panel, MCC panels of water pump

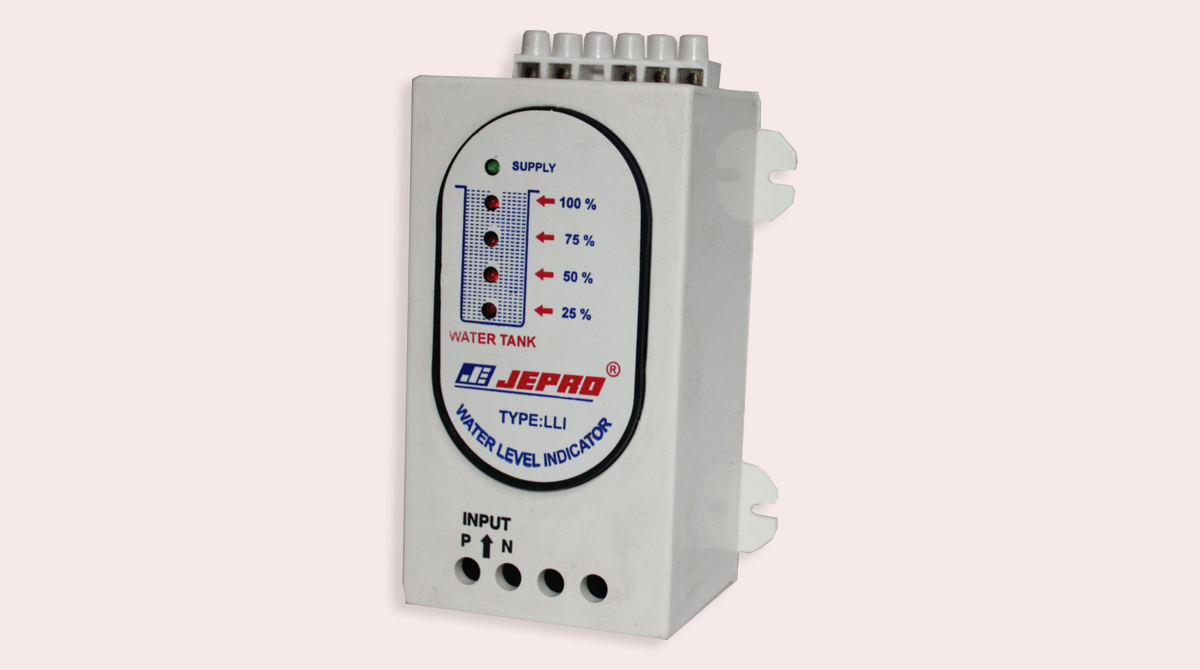

Automatic Liquid Level Controller
LLI-5W
- Suitable for Single Phase Motor/ Pump
- To Indicate water level in overhead tank
- Easy to install
- Four level indicator, 5 sensor
- LED indication for water level in tank and supply
- Also Available 20 level indicator (LLI-21W)
- Available with stainless steel sensor
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Indication | Level 1 – 25%, Level 2 – 50%, Level 3 – 75%, Level 4 – 100%, Supply - Green |
| Enclosure | ABS Material |
- High rise buildings, Housing societies, Commercial complex, Municipal water stations etc.
- Customized industrial Panel, MCC panels of water pump

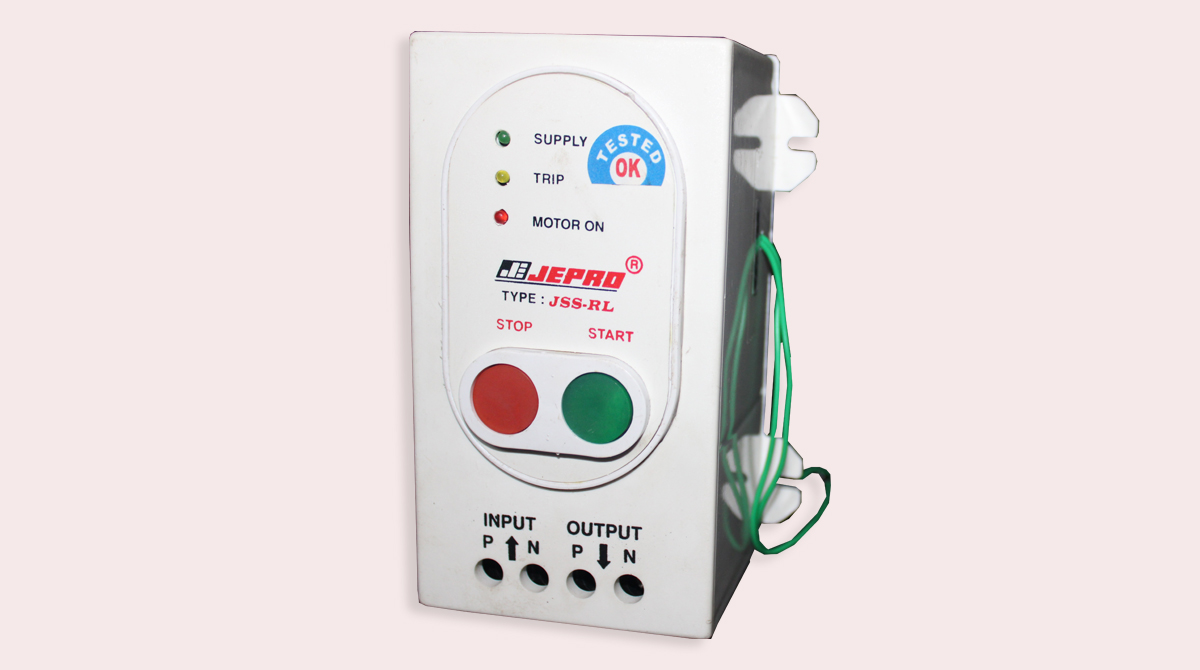

Automatic Liquid Level Controller
TYPE JSS-RL
- Semi Automatic System for overhead tank
- Suitable for Single Phase Open well Motor/ Monoset Pump
- To Prevent from overflow of overhead tank
- Easy to install
- LED indication for Supply, Trip and Motor ON
- Available with SS sensor/ Magnetic Sensor/ Corporation Sensor
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Load Capacity | 16 Amp |
| Switching Device | Relay |
| Indication | Supply, Trip, Motor ON |
| Enclosure | ABS Material |
- High rise buildings, Housing societies, Commercial complex, Municipal water stations etc.
- Customized industrial Panel, MCC panels of water pump

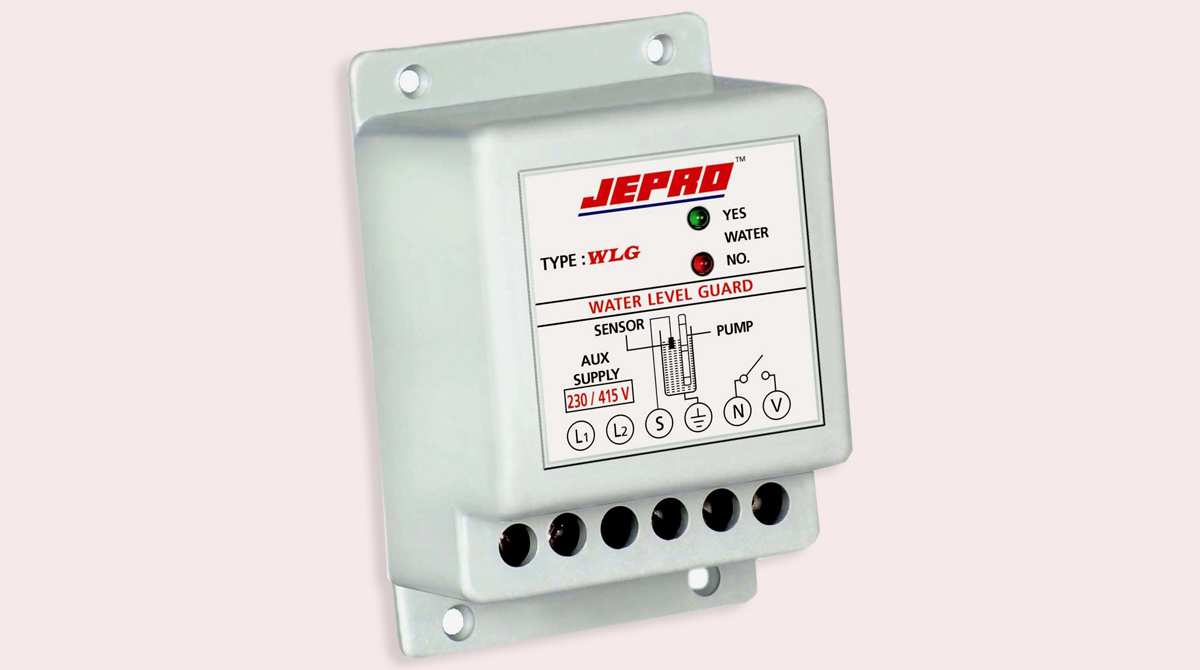

Automatic Liquid Level Controller
WATER LEVEL GUARD, WLG
- Suitable for control panel
- To Prevent from overflow of overhead tank
- No Man Power Required
- Easy to install
- Fully Automatic control according to water level in tank
- LED indication for water YES and water NO facility
- Available with SS sensor
| System Voltage | 230 VAC ± 20%, 50HZ, 415 VAC ± 20%, 50HZ |
|---|---|
| Switching Device | Relay |
| Relay contact | 6 Amp at 230 VAC (Resistive) |
| Indication | Water YES and water NO |
| Enclosure | ABS Material |
- Booster Pump Control Panels
- Submersible Pump Control Panels
- Water Distribution Pump House
- Municipal water stations
