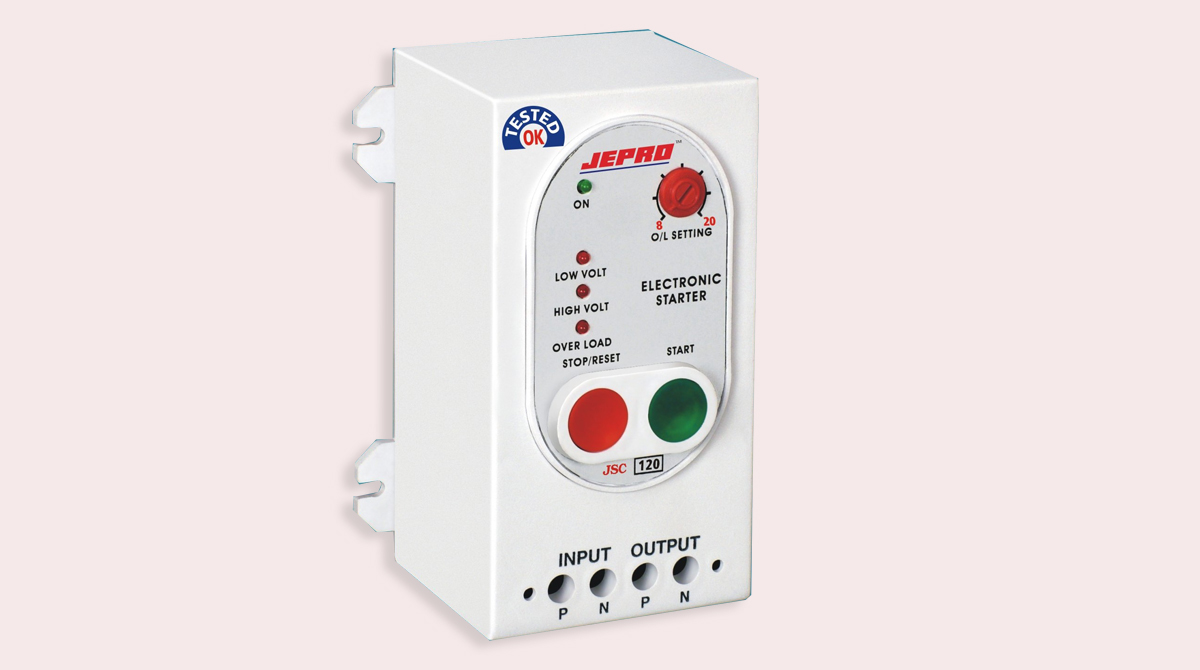

Single Phase Electronics Starter
JSC-120
- Overload Protection
- High voltage Protection
- Low Voltage Protection
- Available in variable current Range
- Easy to set O/L setting
- LED indication
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Current Range | 2-20Amp, 1-10Amp, 10-30Amp |
| Under Voltage | 130V Cut Off – 140V Cut In |
| Over Voltage | 280V Cut Off – 270V Cut In |
| Switching Device | Relay |
| On-Off/Reset | By Manual Push Button |
| Indication | Motor On, H/V, L/V, O/L |
| Enclosure | ABS Material |
- Air Conditioner
- Atta Maker
- Mono Block Electric Motor
- Pressure Pump
- Machine tools

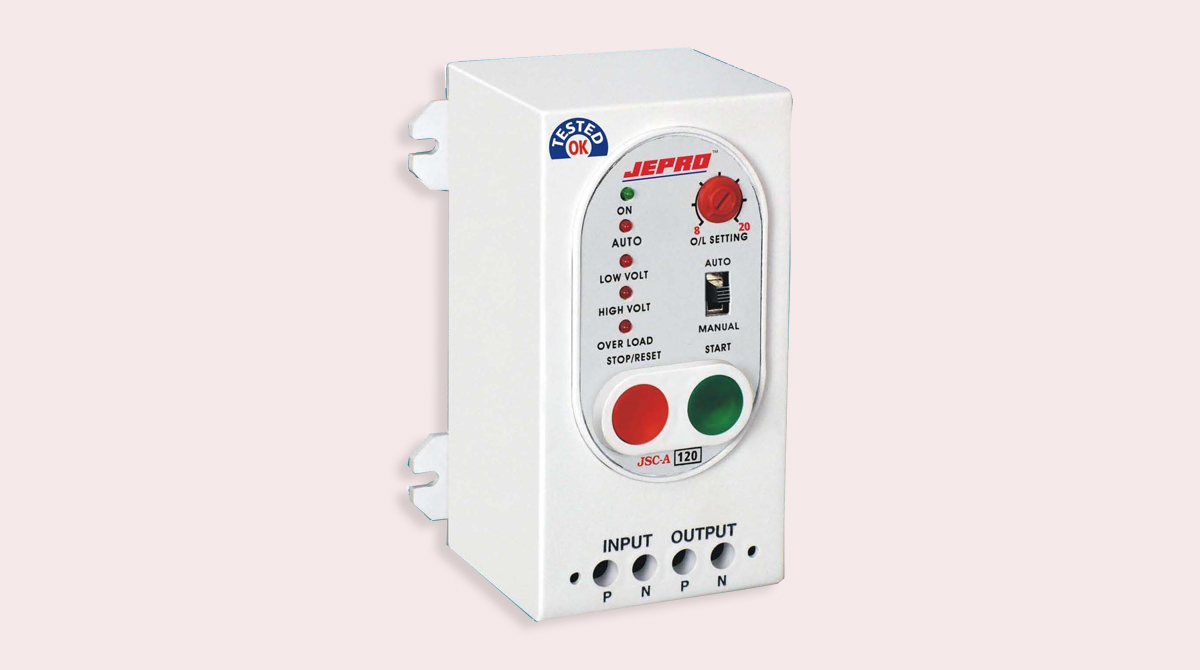

Single Phase Electronics Starter
JSC-A-120
- Auto Start with On Time Delay Facility
- Overload Protection
- High voltage Protection
- Low Voltage Protection
- Easy to set O/L setting
- Auto/Manual Start Facility
- LED Indication
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Current Range | 2-20Amp, 1-10Amp, 10-30Amp |
| Under Voltage | 130V Cut Off – 140V Cut In |
| Over Voltage | 280V Cut Off – 270V Cut In |
| On Time Delay | 1 min |
| Switching Device | Relay |
| On-Off/Reset | By Manual Push Button |
| Indication | Motor On, H/V, L/V, O/L |
| Enclosure | ABS Material |
- Air Conditioner
- Atta Maker
- Mono Block Electric Motor
- Pressure Pump
- Machine tools

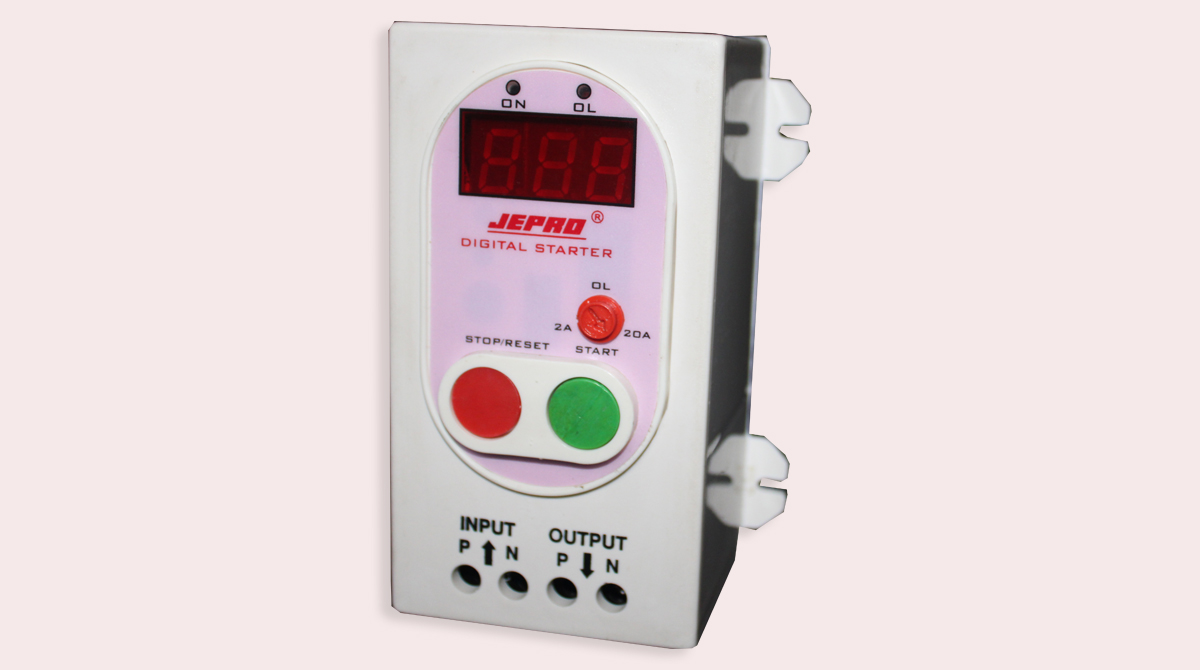

Single Phase Electronics Starter
JSC-DG
- Microcontroller Based Technology
- Digital Volt /Amp Meter
- Overload Protection
- High voltage Protection
- Low Voltage Protection
- Easy to set O/L setting using adjustable knob
- LED Indication
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Current Range | 2-20Amp, 1-10Amp |
| Under Voltage | 130V Cut Off – 140V Cut In |
| Over Voltage | 280V Cut Off – 270V Cut In |
| Switching Device | Relay |
| On-Off/Reset | By Manual Push Button |
| Indication | Motor On, O/L |
| Enclosure | ABS Material |
- Air Conditioner
- Atta Maker
- Mono Block Electric Motor
- Pressure Pump
- Machine tools

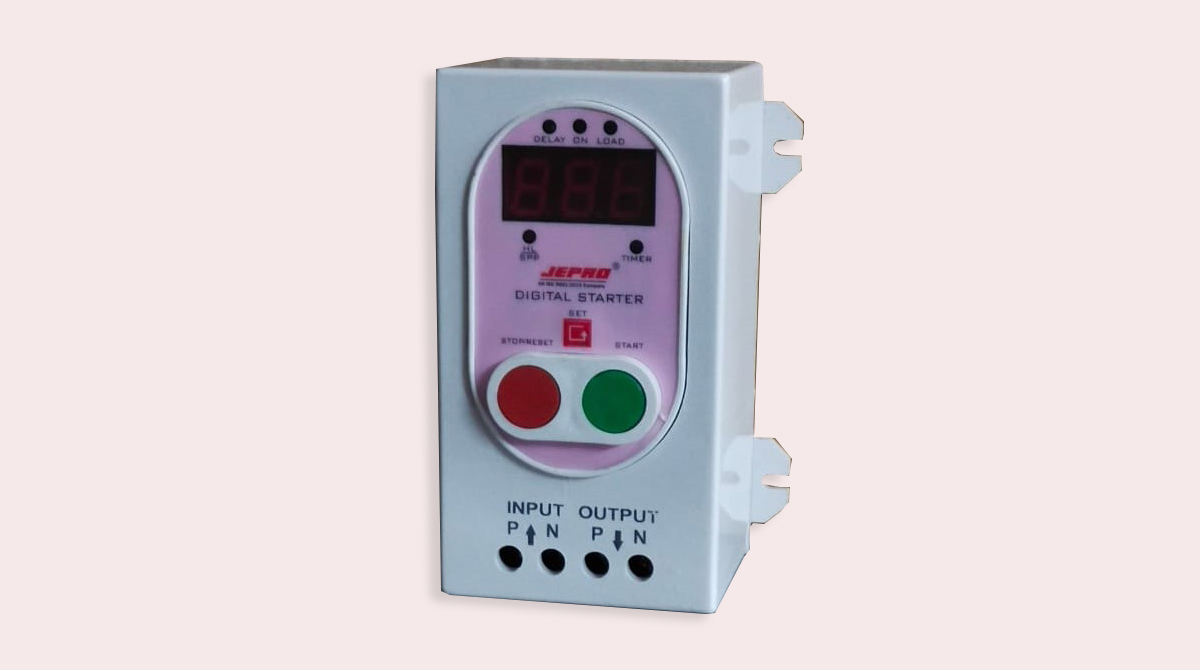

Single Phase Electronics Starter
OLS
- Microcontroller Based Technology
- Digital Volt /Amp Meter
- Overload Protection
- High voltage Protection
- Low Voltage Protection
- Easy to set O/L current by SET Key
- Auto/Manually Start Facility
- LED Indication
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Current Range | 2-20Amp, 1-10Amp |
| Under Voltage | 130V Cut Off – 140V Cut In |
| Over Voltage | 280V Cut Off – 270V Cut In |
| Switching Device | Relay |
| On-Off/Reset | By Manual Push Button |
| Indication | Motor On, O/L,H/L, Delay |
| Enclosure | ABS Material |
- Air Conditioner
- Atta Maker
- Mono Block Electric Motor
- Pressure Pump
- Machine tools

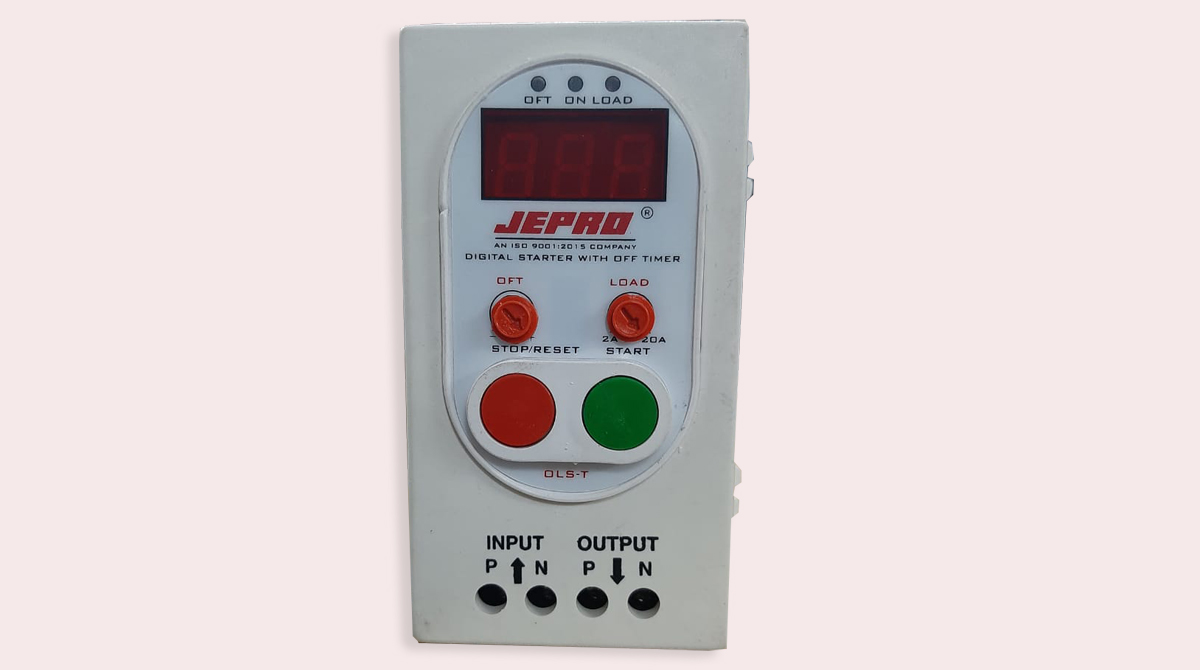

Single Phase Electronics Starter
OLS-T
- Microcontroller Based Technology
- Digital Volt /Amp Meter
- OFF Timer Facility
- Overload Protection
- High voltage Protection
- Low Voltage Protection
- Easy to set O/L & OFF Timer by adjustable knob
- LED Indication
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Current Range | 2-20Amp, 1-10Amp |
| OFF Time | 1Min to 180Min |
| Under Voltage | 130V Cut Off – 140V Cut In |
| Over Voltage | 280V Cut Off – 270V Cut In |
| Switching Device | Relay |
| On-Off/Reset | By Manual Push Button |
| Indication | Motor On, O/L, OFF Timer |
| Enclosure | ABS Material |
- Air Conditioner
- Atta Maker
- Mono Block Electric Motor
- Pressure Pump
- Machine tools

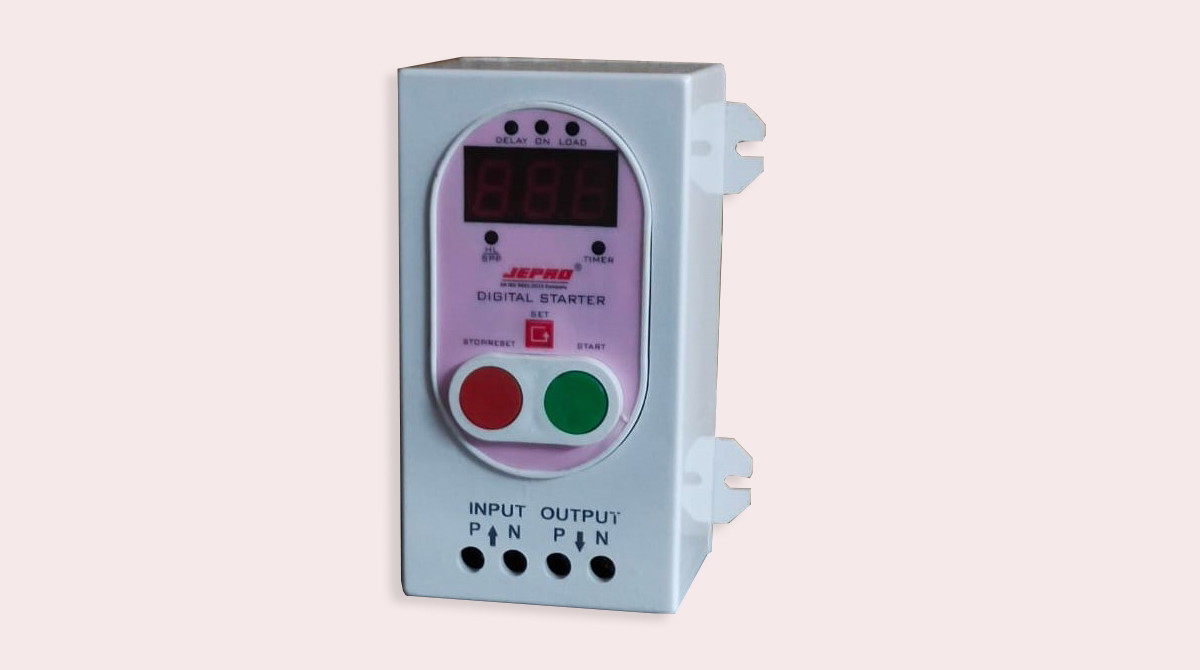

Single Phase Electronics Starter
DLS
- Microcontroller Based Technology
- Digital Volt /Amp Meter
- Dry Run Protection
- Overload Protection
- Available in Variable Current Range
- High voltage Protection
- Low Voltage Protection
- Easy to set O/L & D/R by SET key
- Auto/Manually Start Facility
- LED Indication
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Current Range | 2-20Amp, 1-10Amp |
| Under Voltage | 130V Cut Off – 140V Cut In |
| Over Voltage | 280V Cut Off – 270V Cut In |
| Switching Device | Relay |
| On-Off/Reset | By Manual Push Button |
| Indication | Motor On, O/L,H/L, Delay |
| Enclosure | ABS Material |
- Air Conditioner
- Atta Maker
- Mono Block Electric Motor
- Pressure Pump
- Machine tools

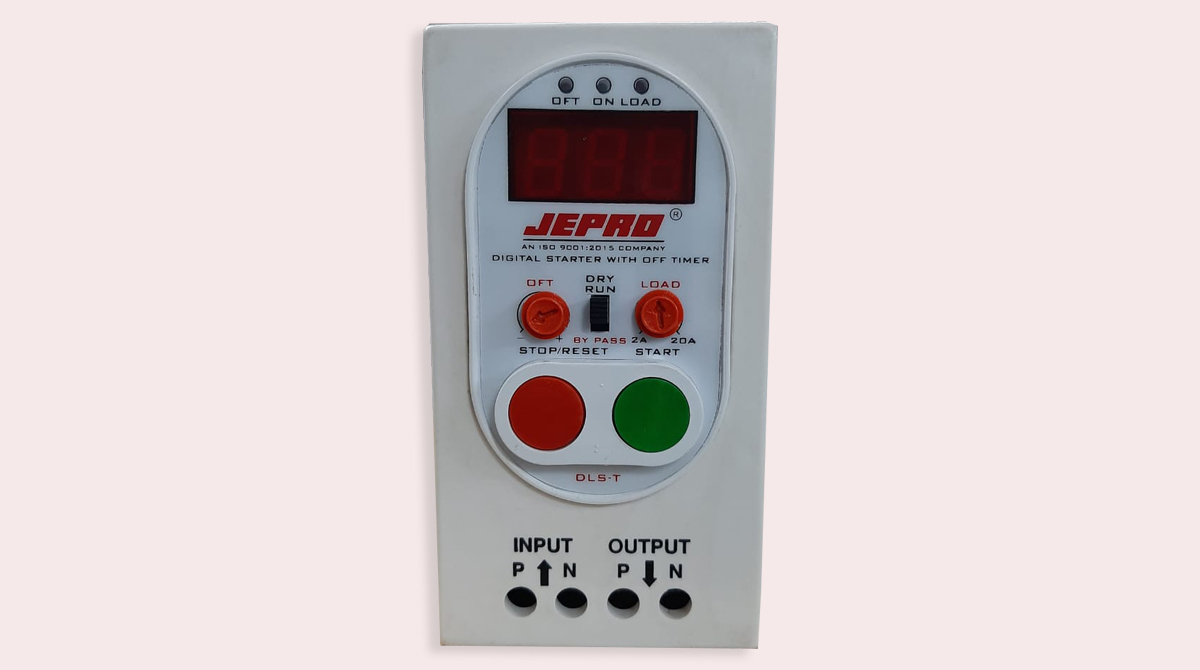

Single Phase Electronics Starter
DLS-T
- Microcontroller Based Technology
- Digital Volt /Amp Meter
- OFF Timer Facility
- Dry Run Protection
- Overload Protection
- High voltage Protection
- Low Voltage Protection
- Easy to set O/L, D/R, OFF Timer by adjustable knob
- LED Indication
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Operating Voltage | 140V to 285V |
| Current Range | 2-20Amp, 1-10Amp |
| OFF Time | 1Min to 180Min |
| Under Voltage | 130V Cut Off – 140V Cut In |
| Over Voltage | 280V Cut Off – 270V Cut In |
| Switching Device | Relay |
| On-Off/Reset | By Manual Push Button |
| Indication | Motor On, O/L, OFF Timer |
| Enclosure | ABS Material |
- Air Conditioner
- Atta Maker
- Mono Block Electric Motor
- Pressure Pump
- Machine tools
