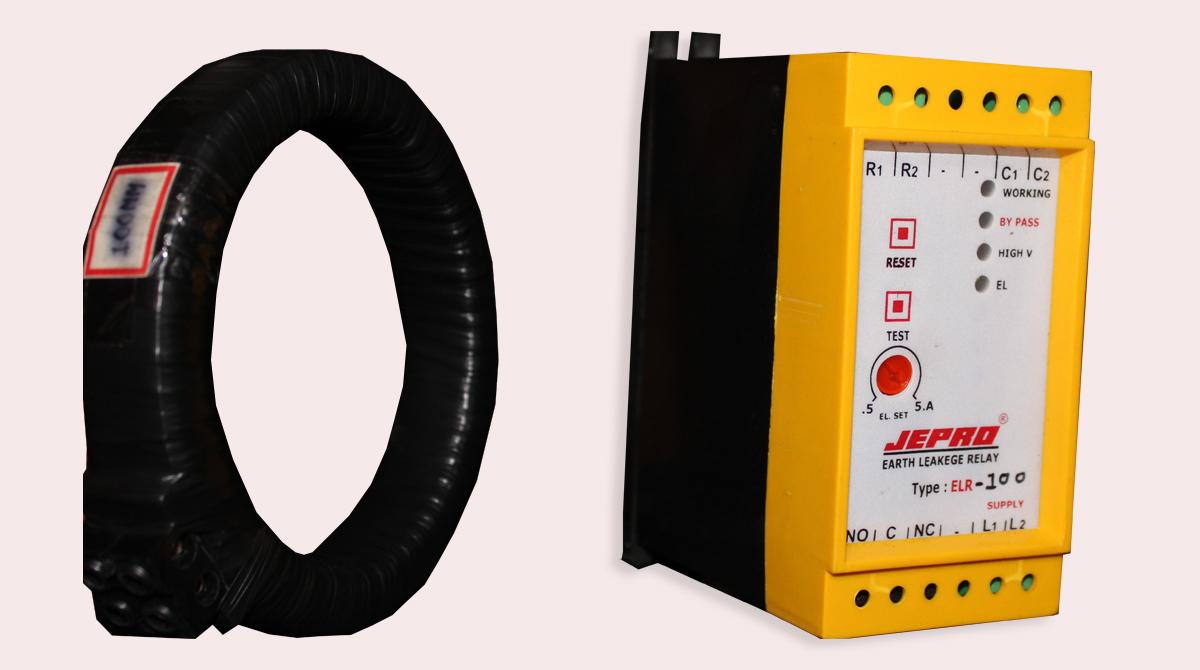

EARTH LEAKAGE RELAY
EARTH LEAKAGE RELAY
ELR-100
- Monitor, Detect & Protect Power system from leakage fault
- Available in Wide Operating Current Range
- High Voltage Cut Off
- Provide Test & Reset key
- Din Rail Mounting
- LED indication
| System Voltage | 230 VAC ± 20%, 50HZ, 415VAC ± 20%, 50HZ |
|---|---|
| Relay contact | 1 C/O contact with 6Amp resistive load at 230 VAC |
| Leakage Current | 0.5A to 5A (Adjustable) |
| Tripping Time | 100 ms |
| Reset | Manual |
| CBCT Types | 70 mm, 110 mm, 200 mm, 300 mm Diameter |
| Indication | working, Bypass, High V, EL |
| Enclosure | Engineering Grade ABS Material |
- LT Control Panel
- Generator set
- Motor protection
- Transformer protection
- Distribution panel
- Process control
- Utility power mounting
- Switch gear Protection
- To Protect Human Life From Electric Shock

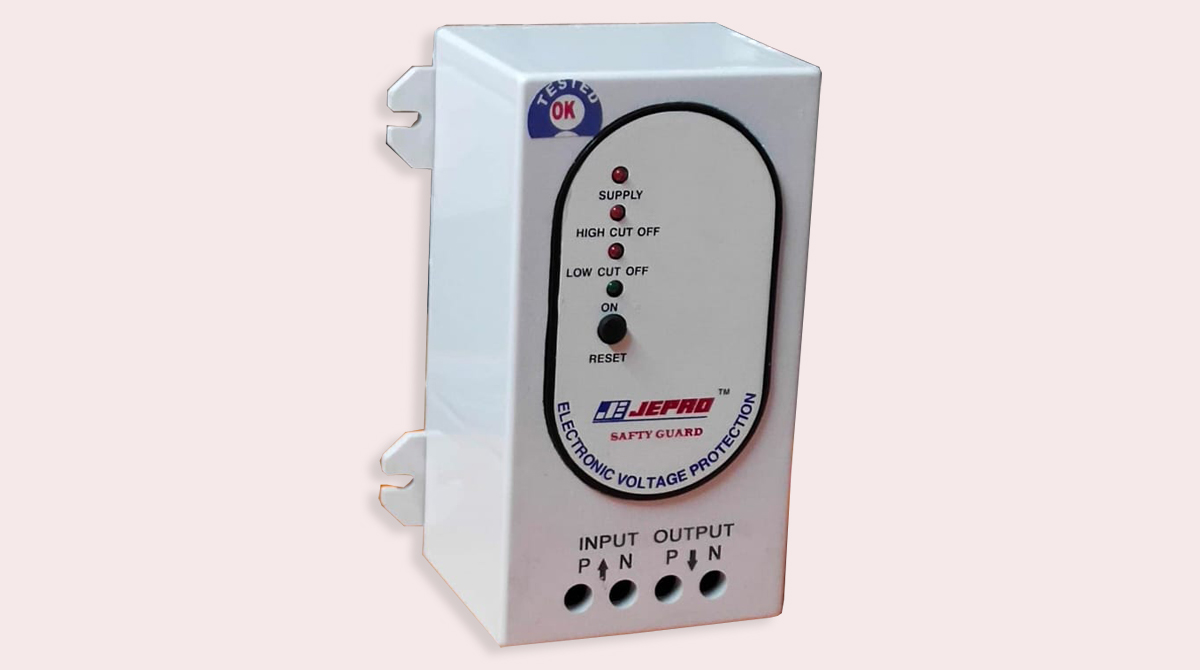

HIGH VOLTAGE CUT-OFF RELAY, HVC
HIGH VOLTAGE CUT-OFF RELAY, HVC
HVC
- Microcontroller Based Technology
- High voltage Protection
- Low voltage Protection
- Provide Reset key
- Auto Reset Facility provided (Optional)
- Wall Mounting
- LED indication
| System Voltage | 230VAC ± 20%, 50HZ |
|---|---|
| Overvoltage Tripping | 280V |
| Relay contact | 1 N/O output |
| Load Capacity | 16Amp |
| Reset | Manual |
| Indication | supply, high & Low cut off, ON |
| Enclosure | ABS Material |
- Used for Single phase Electric Equipment
OVERLOAD PROTECTION RELAY

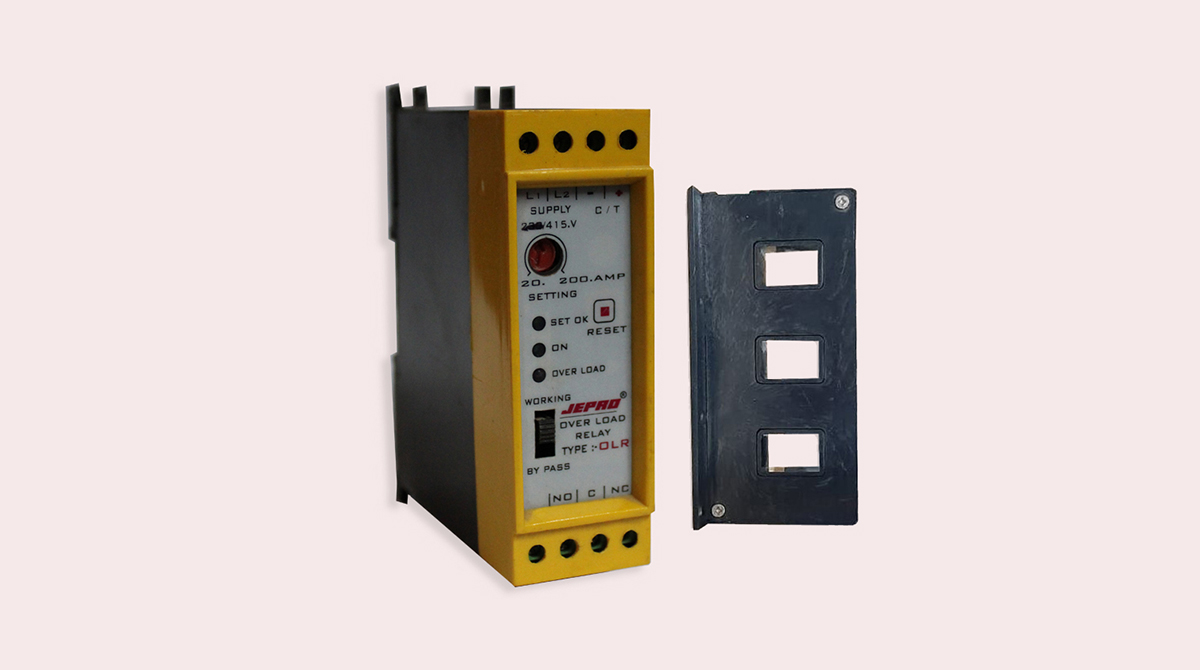

OVERLOAD RELAY
OLR-200
- Microcontroller Based Technology
- Overload protection
- Available in Wide Operating Current Range
- Provide Reset key
- Auto Reset Facility provided (Optional)
- Working / Bypass switch
- Din Rail Mounting
- LED indication
| System Voltage | 415VAC ± 20%, 50HZ |
|---|---|
| Switching Device | Relay |
| Relay contact | 1 C/O contact with 6Amp resistive load |
| Reset | Manual |
| Current Range | 4-20A, 10-100A, 20-200A |
| Indication | set ok, ON, overload |
| Enclosure | Engineering Grade ABS Material |
- ATS Control Panel
- Star Delta Panel
- DOL Panel
- Distribution panel

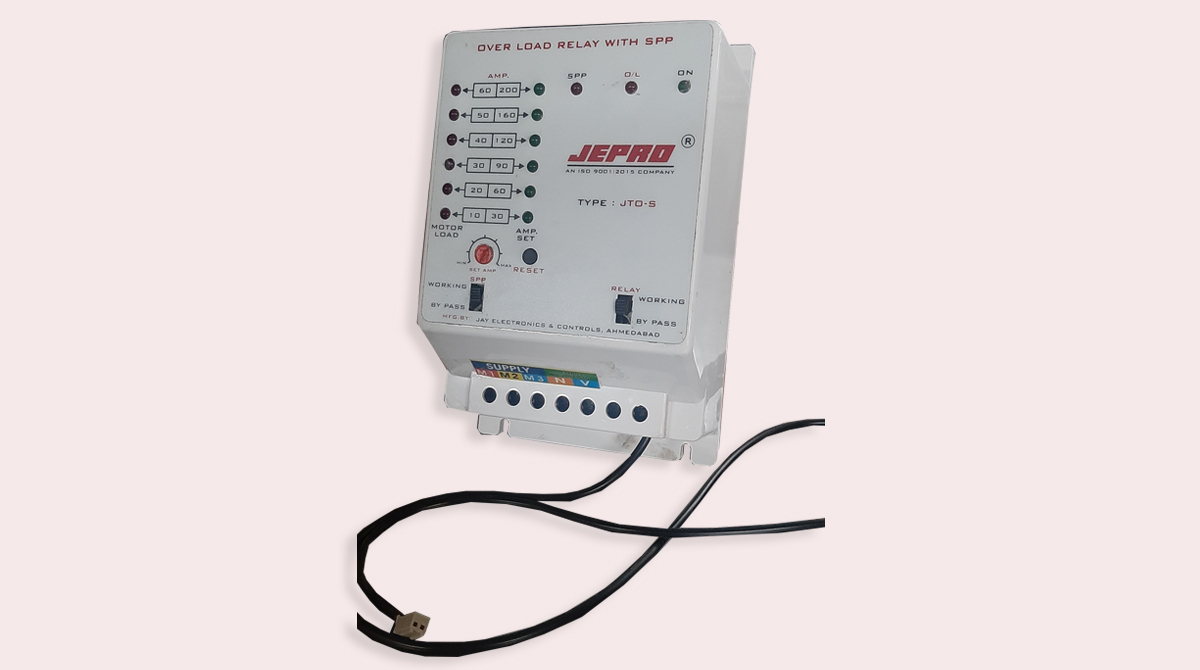

OVERLOAD RELAY
JTO-S
- Microcontroller Based Technology
- Overload protection
- Phase Failure Protection
- Available in Wide Operating Current Range
- Easy to set overload by adjustable knob
- Provide Reset key
- Working / Bypass switch for Relay and SPP
- LED indication
| System Voltage | 415VAC ± 20%, 50HZ |
|---|---|
| Relay contact | 1 C/O contact with 6Amp resistive load |
| Reset | Manual |
| Current Range | 10A-200A |
| Indication | Motor Amp, O/L setting Amp, Motor ON, Overload, SPP |
| Enclosure | Engineering Grade ABS Material |
- ATS Control Panel
- Star Delta Panel
- DOL Panel
- Distribution panel

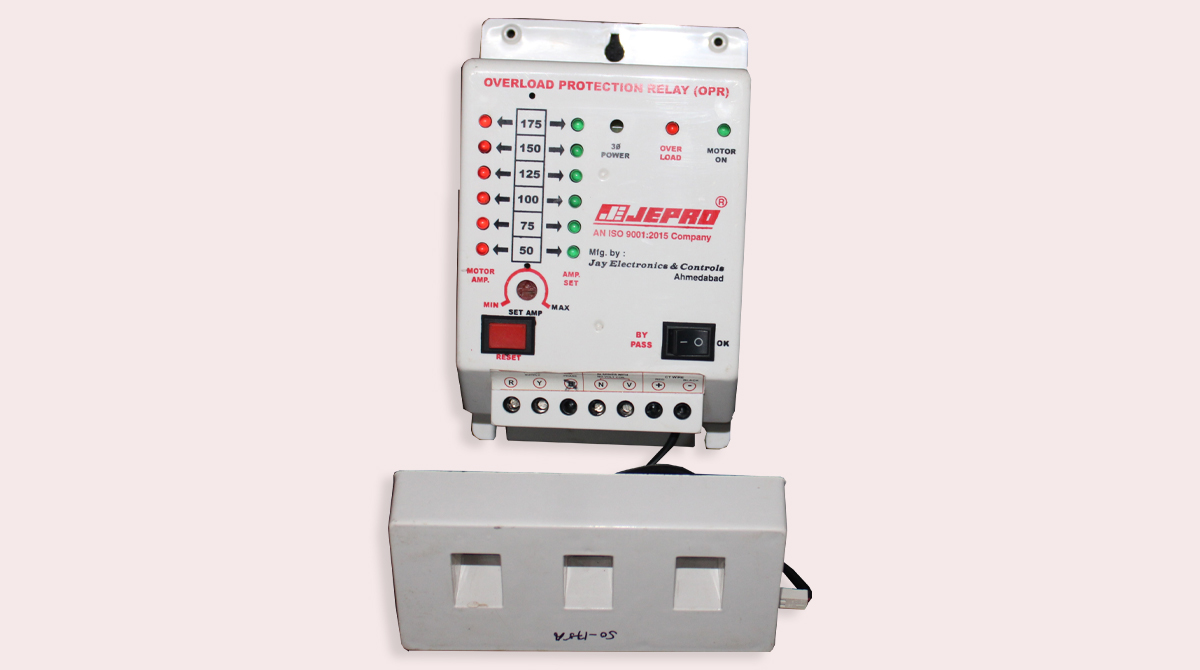

OVERLOAD RELAY
OPR-175
- Microcontroller Based Technology
- Overload protection
- Available in Wide Operating Current Range
- Provide Reset key
- Working / Bypass switch
- LED indication
| System Voltage | 415VAC ± 20%, 50HZ |
|---|---|
| Switching Device | Relay |
| Relay contact | 1 C/O contact with 6Amp resistive load |
| Reset | Manual |
| Current Range | 50A-175A, 34A-110A |
| Indication | Motor Amp, O/L setting Amp, Motor ON, Overload |
| Enclosure | Engineering Grade ABS Material |
- ATS Control Panel
- Star Delta Panel
- DOL Panel
- Distribution panel
