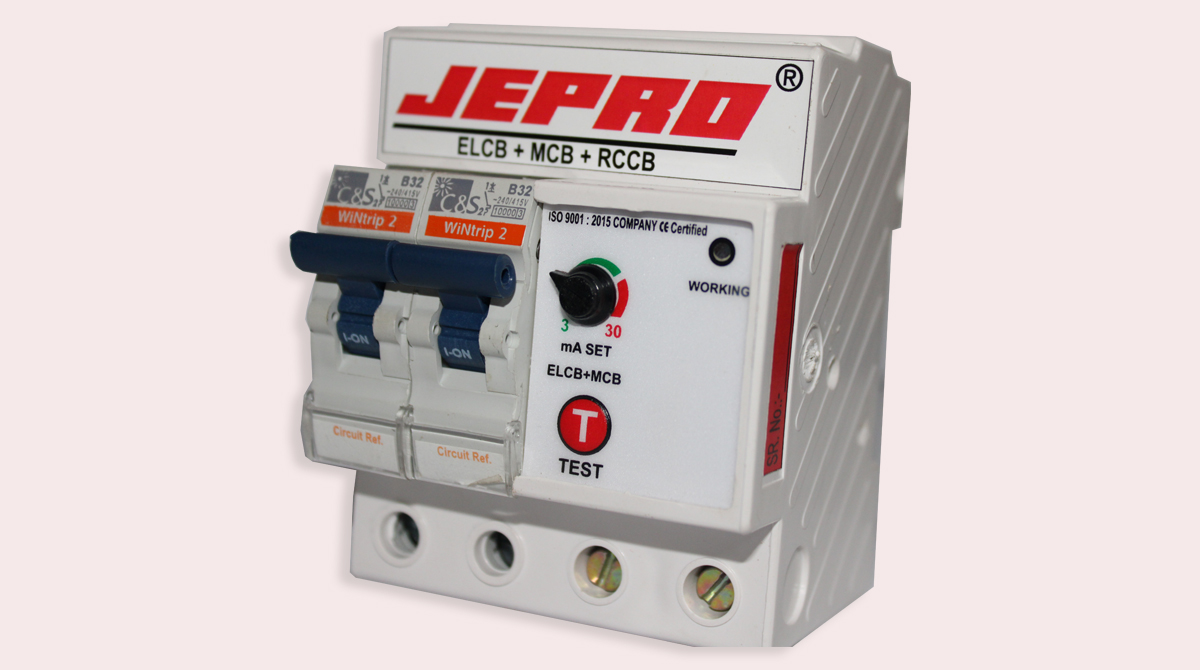

Shock Guard
ELCB+RCCB+MCB 32AMP
- Save life from Dangerous Electrical Shock
- Overload and short circuit Protection
- High Voltage Cut Off
- Provide Test key
- Adjust leakage current from 3mA to 30mA
- LED indication for Working Condition
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Load Current Rating | 20Amp, 32Amp |
| Over voltage cut off | 280V above |
| Tripping Time | <30ms |
| No. Of Poles | 2 |
| Enclosure | ABS Material |
- To Protect Human Life From Electric Shock

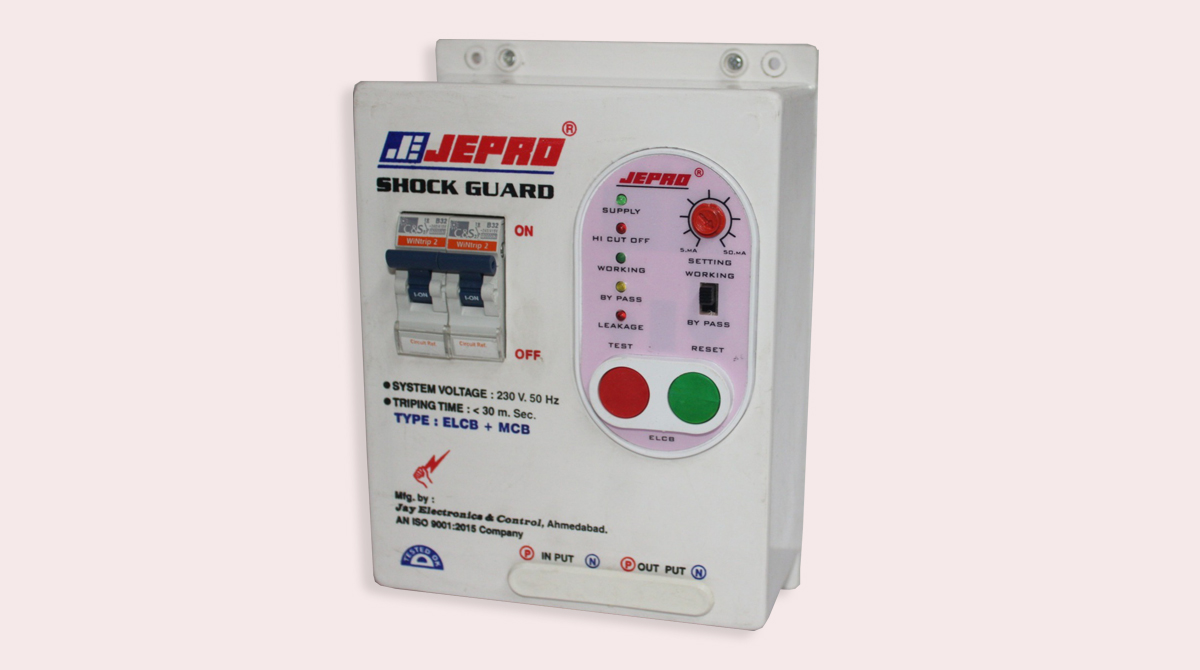

Shock Guard
SINGLE PHASE ELCB+MCB 32AMP
- Save life from Dangerous Electrical Shock
- Overload and short circuit Protection
- Provide Surge Protection
- High Voltage Cut Off
- Provide Test/Reset Push Buttons
- Emergency Bypass Facility
- LED indication
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Load Current Rating | 20Amp, 32Amp |
| Leakage Current | 5mA to 50mA (Adjustable) |
| Tripping Time | < 30 ms |
| No. Of Poles | 2 |
| Enclosure | ABS Material |
- To Protect Human Life From Electric Shock

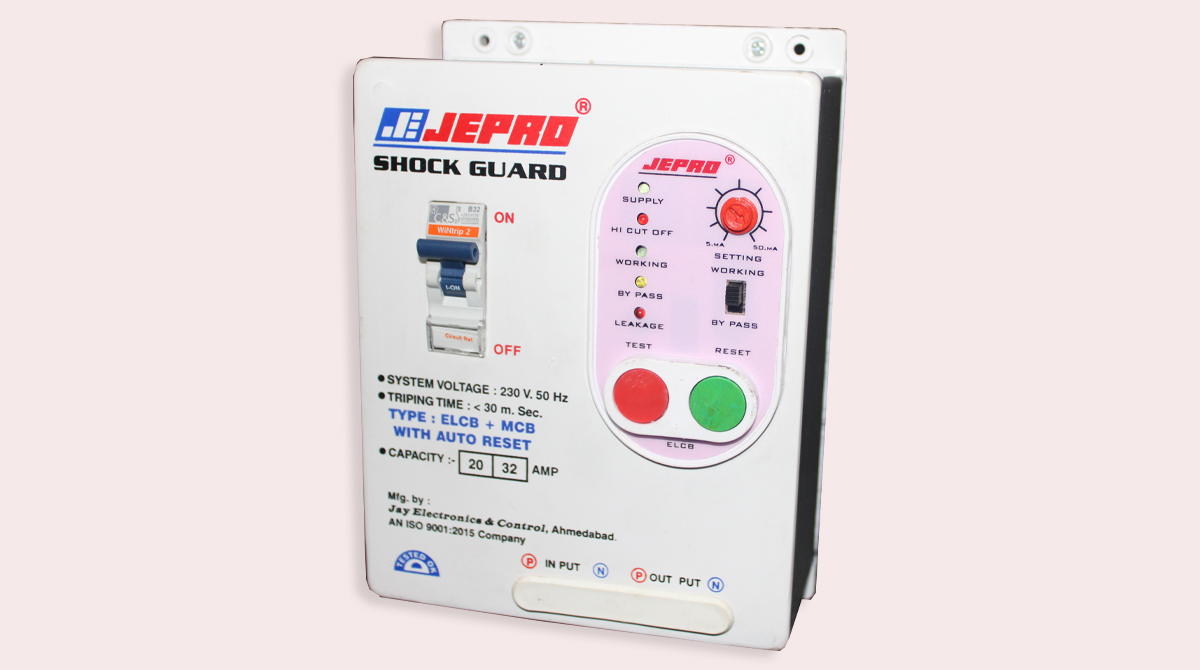

Shock Guard
SINGLE PHASE ELCB+MCB WITH AUTO RESET
- Save life from Dangerous Electrical Shock
- Provide Auto Reset Facility
- Overload and short circuit Protection
- Provide Surge Protection
- High Voltage Cut Off
- Provide Test/Reset Push Buttons
- Adjust leakage current from 5mA to 50mA
- Emergency Bypass Facility
- LED indication
| System Voltage | 230 VAC ± 20%, 50HZ |
|---|---|
| Load Current Rating | 20Amp, 32Amp |
| Tripping Time | < 30ms |
| Reset Mode | Auto |
| Restart Time delay | 1.5 Minute |
| Switching Device | Power Relay |
| Over Voltage Protection | above 280V |
| No. Of Poles | 1 |
| Enclosure | ABS Material |
- To Protect Human Life From Electric Shock

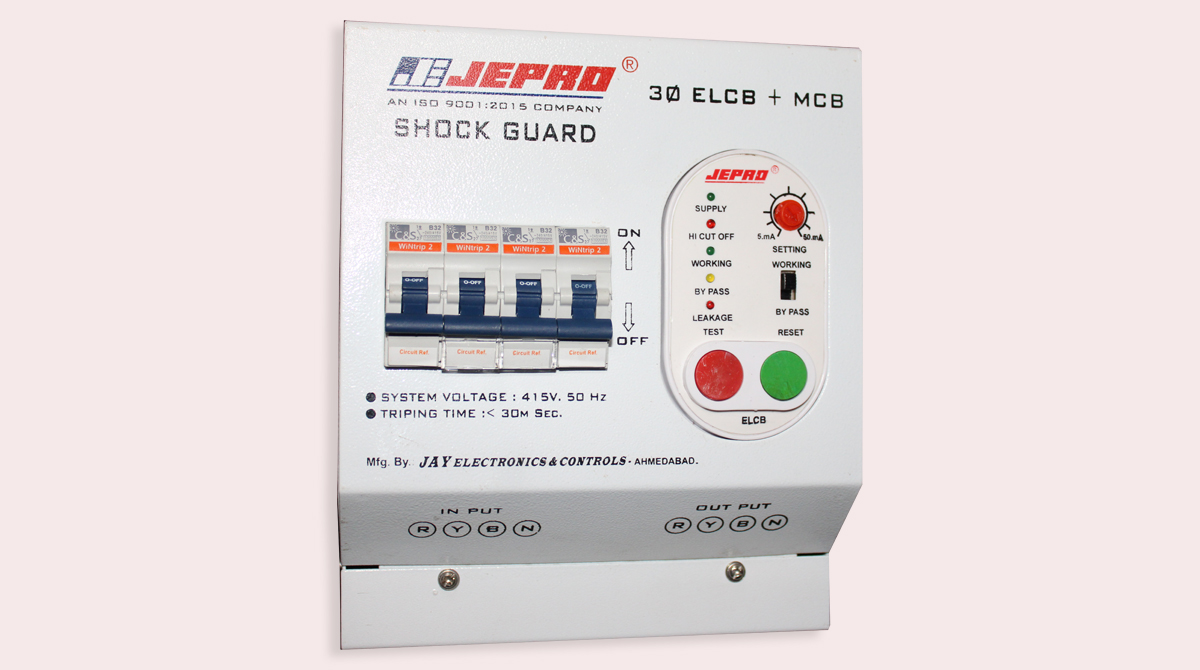

Shock Guard
Three Phase ELCB+MCB, 32Amp
- Protect Human from Dangerous Electrical Shock
- Overload and short circuit Protection
- Provide Surge Protection
- High Voltage Cut Off
- Provide Test/Reset Key
- Emergency Bypass Facility
- LED indication
| System Voltage | 415 VAC ± 20%, 50HZ |
|---|---|
| Load Capacity | 32Amp, 63Amp |
| Over Voltage Protection | above 480V |
| Leakage Current | 5mA to 50mA (Adjustable) |
| Tripping Time | < 30ms |
| No. of Poles | 4 |
| Enclosure | Metal body |
- To Protect Human Life From Electric Shock

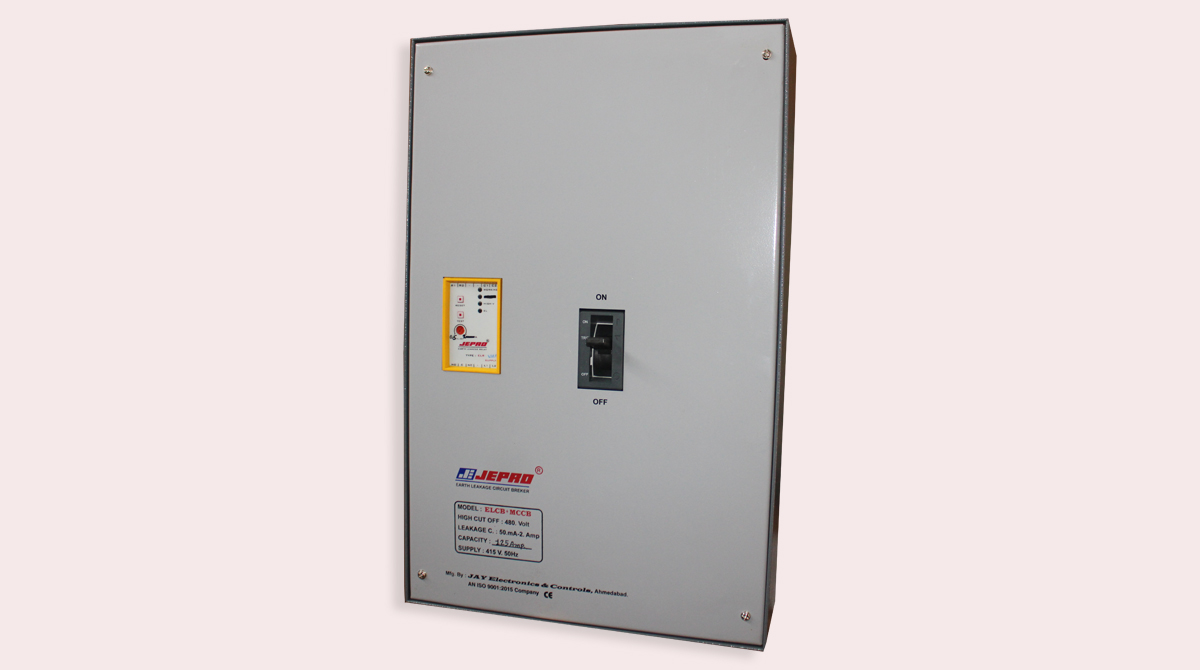

Shock Guard
Three Phase ELCB+MCCB, 125Amp
- Save life from Dangerous Electrical Shock
- Overload and short circuit Protection
- Provide Surge Protection
- High Voltage Cut Off
- Provide Test/Reset Key
- Emergency Bypass Facility
- LED indication
| System Voltage | 415 VAC ± 20%, 50HZ |
|---|---|
| Over Voltage Protection | 480V above |
| Load Capacity | 125Amp, 250Amp |
| Leakage Current | 0.5A to 2A (Adjustable) |
| Tripping Time | < 30ms |
| Indication | Working, High V, EL |
| Enclosure | Metal body |
- To Protect Human Life From Electric Shock
- Used in industries and commercial
